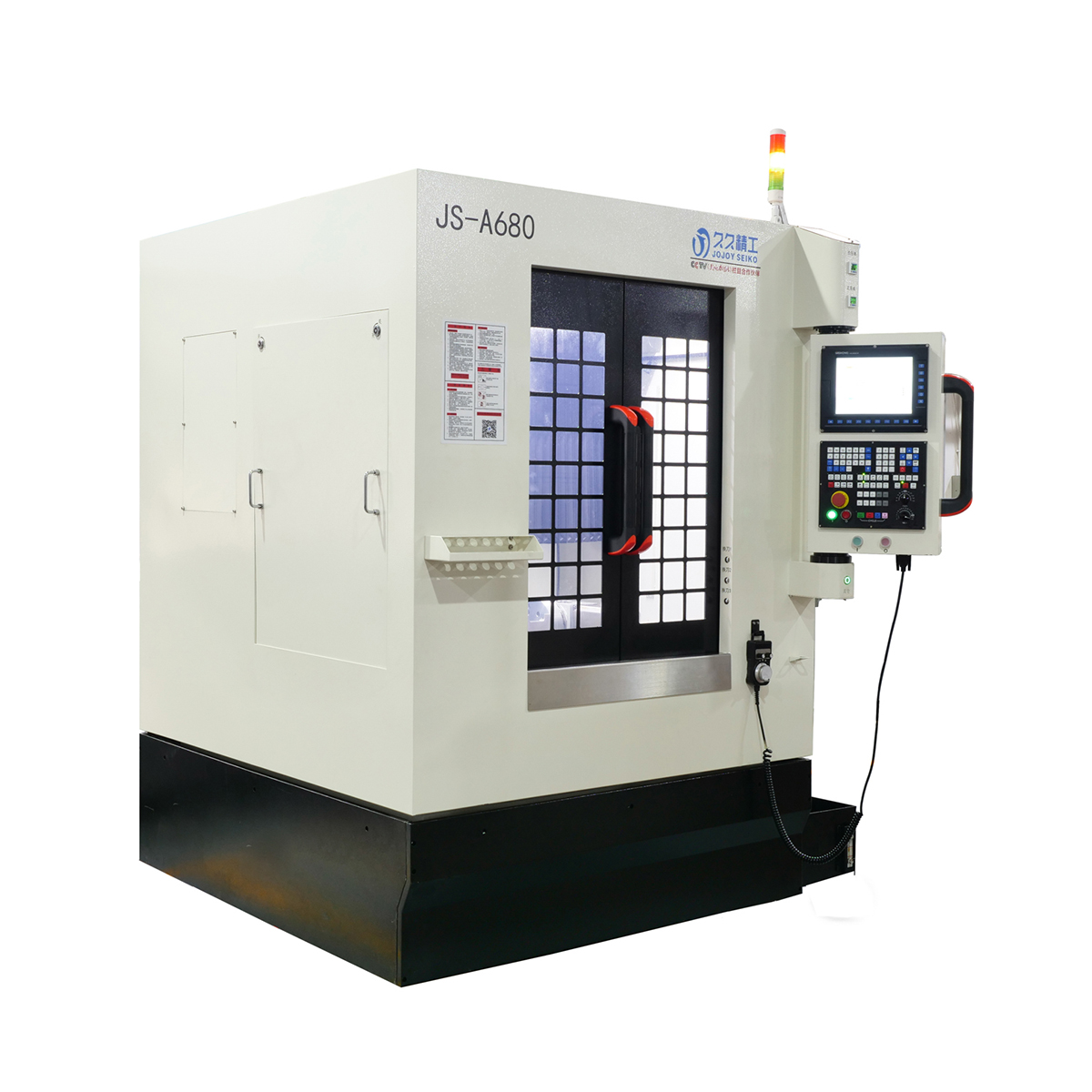

JS-A680-V2.0

APPLICATION

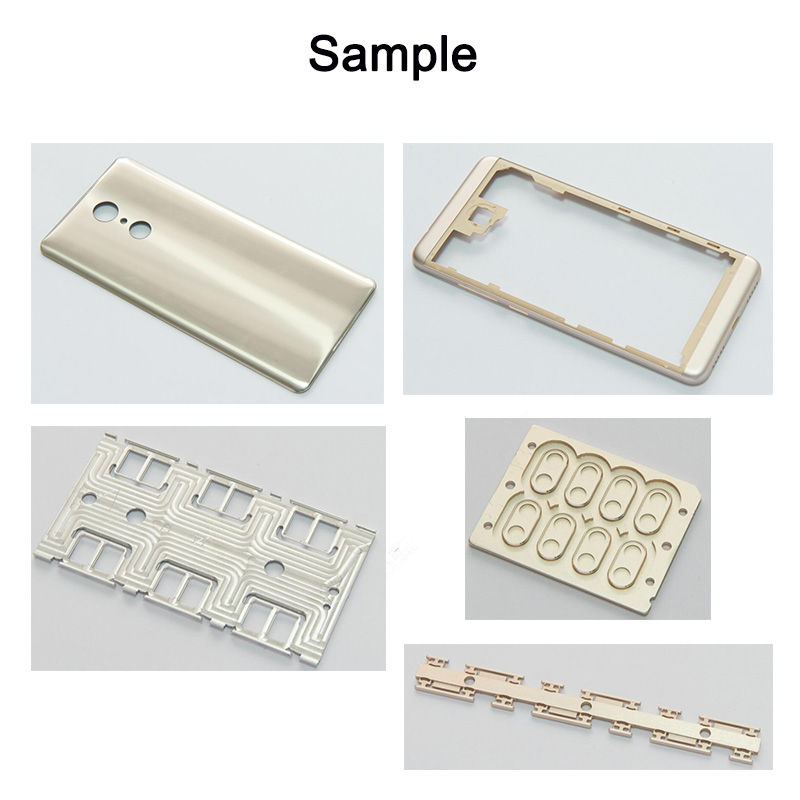

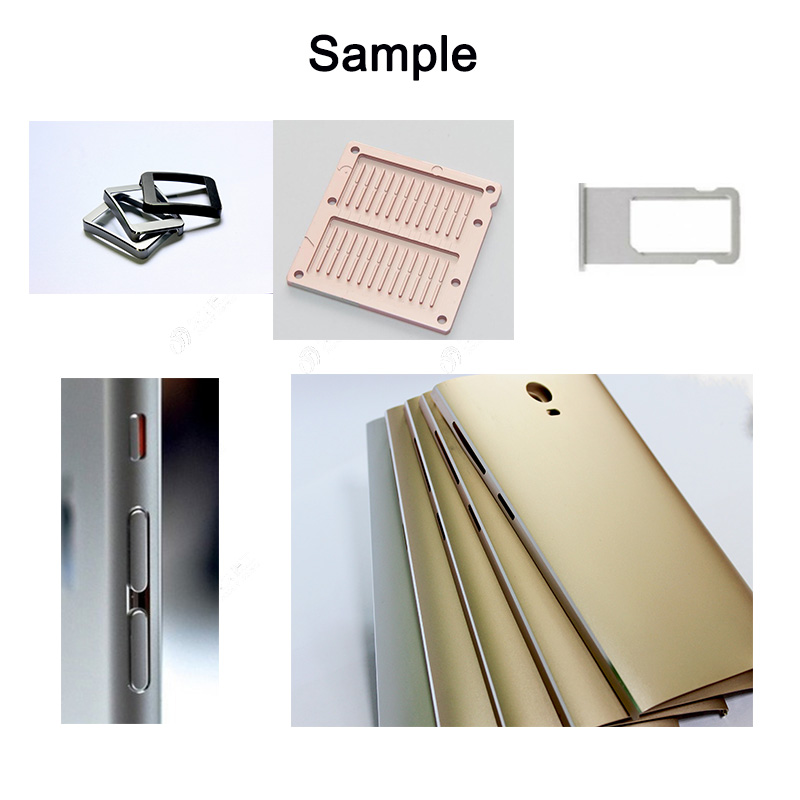

1. Mobile phone 3C accessories：Mobile phone on-off keys, volume keys, card slots and card slot holder, middle frame, mobile phone shell and small complex 3D aluminum products. 2. Stainless Steel camera lens, Stainless Steel fingerprint button. 3. Other products such as metal, non-metal, stainless steel, aluminum alloy.
FEATURE
Mainly process 3c metal phone accessories such as mobile phone middle frame and button, card slot, fingerprint identification copper ring and other small metal parts. Two spindles or three spindles can be chosen, different knives storage design, such as 6pc, 9pcs and 11pcs knives storage each spindle, are available according to different products. Adopted with servo knife change mode, which is more accurate and higher efficiency. Added with the blade function, more knives can be automatically changed, multi-process can be completed in one machine. High efficiency and less costs by simultaneous processing by three-heads. It is able to process multi-surface at a time by choosing the 4th NC rotary workbench and it makes an advantage combination of large drilling and tapping machine and engraving machines.







FUNCTION
1. Mill metal, non-metal, stainless steel, aluminum alloy mobile phone keys, mobile phone shell,mobile phone button.
2. Processing the micro-hole with mobile phone receiver .
3. Suitable for cutting and processing of composite material panel.
4. Optional four-axis to process more products.

Machine Specifications
NO.	Key Performance parameters	Key Performance parameters
		JS-A680-V2.0 (Full-cover)
		Double spindles
	Machine Basic Information
1	Table size（mm）	700*500
2	Working Stroke for X.Y.Z（mm）	400520160
3	Working Table Structure	Cast iron T-TYPE groove
4	Machine base	Jinan Blue Marble
5	Net Weight	2.2T
	Machine Accuracy
6	Processig Accuracy（mm）	±0.01
7	Position Accuracy（mm）	0.008
8	Repeatability Accuracy for X.Y.Z（mm）	0.004
9	Spindle spacing（mm）	312
	Transmission structure
10	Transmission Structure for X.Y.Z	Wire Rod Transmission
11	Lubricant ways	Automatic oil pump
12	Wire Rod	C3 Grade imported
13	Linear Guide Rail	P Grade imported
	Power
14	Max Power	9 KW
15	Max Running speed	30000mm/min
16	Max Processing speed	15000mm/min
	System Configuration
17	Control System Configuration	Shanghai Weihong NK300CX
18	Drive System	Inovance Servo Absolute Value
19	Frequency converter	Inovance 3.7kw
	Spindle Specification
20	Spindle number	2 PC
21	Spindle Configuration	2.5KW 40000r/min
22	Spindle Cooling Method	Water Cooling
23	Height From Spindle to working table（mm）	360
	Knife Storage
24	Knife Quantity and Knife Storage Mode	11pc*2spindles straight tool storage
25	Tool Holder Type	ISO20
	Electric Part
26	Brand of Electric Control Part	Such as Schneider，Omron or other
27	Power Supply	Three Phase AC380V / 50Hz
28	Electric Cabinet Cooling Mode	Condensator
	Other
29	Operate Environment	Temperature：0°～45°C, relative humidity：30%～75%
30	Machining instructions	G Code
31	Waterspray System	Adjustable-angle Waterspray
	Optional components
32	The fouth axis	Optional
