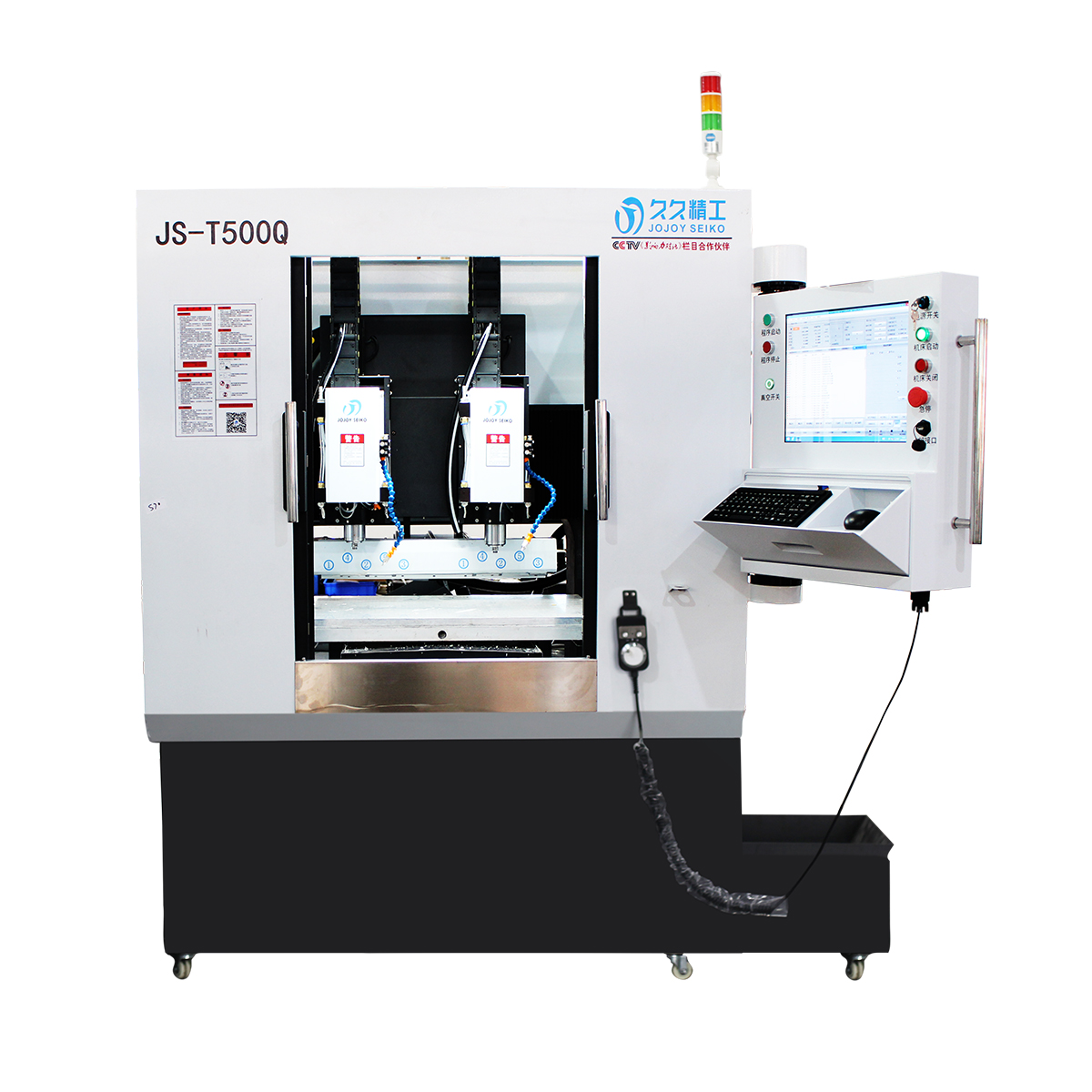

JS-T500Q-V3.3

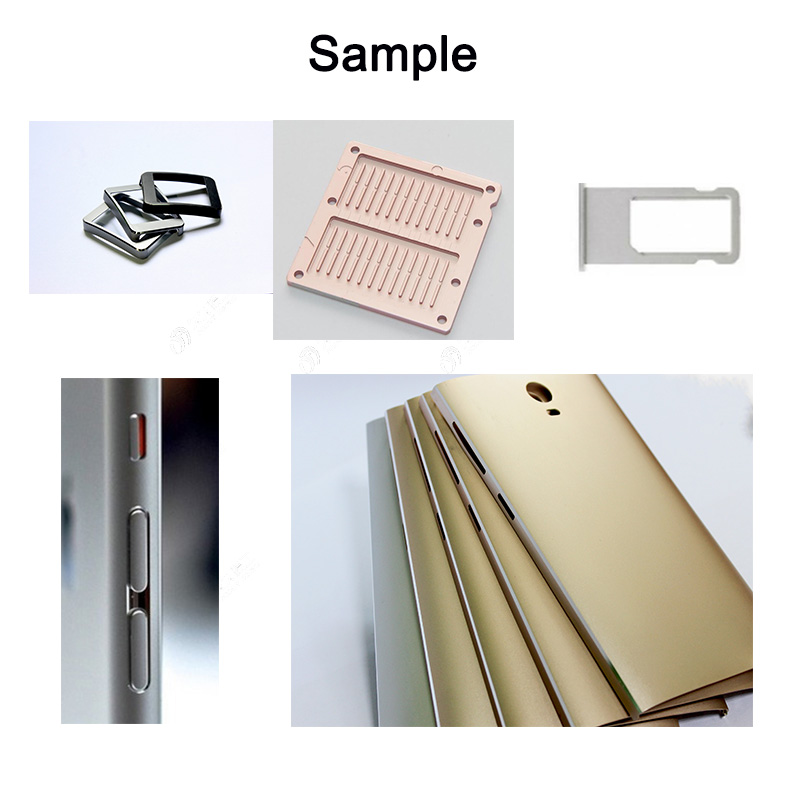

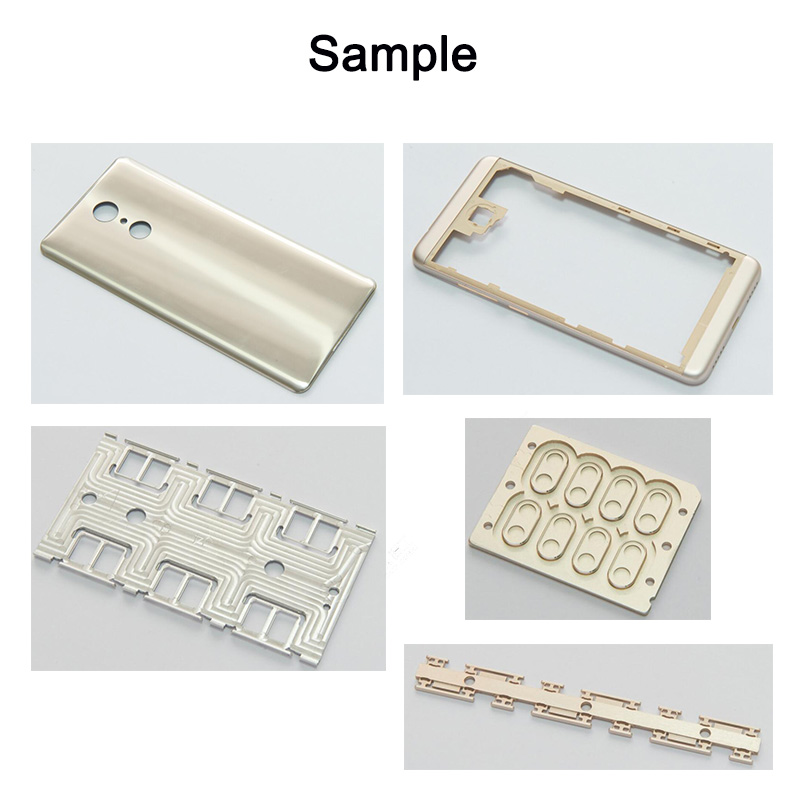

APPLICATION 1. Mobile phone 3C accessories：Mobile phone on-off keys, volume keys, card slots and card slot holder, middle frame, mobile phone shell and small complex 3D aluminum products.
2. Stainless Steel camera lens, Stainless Steel fingerprint button.
3. Other products such as metal, non-metal, stainless steel, aluminum alloy.FEATURE 1. Equipped with Jinan blue marble structure, high precison and more stable of non-deformation and no vibration during processing. 2. High precision C3 wire rod , P linear guide rail and bearings, which make a long service life. 3. Newly designed automatic lubrication system for long-lasting lubrication of moving parts. Keep the machine clean and not leaking oil. 4. Equipped with high speed, high precision spindle and advanced spindle cooling thermostat system. 5. Mechatronics structure design, covers a smaller area, more beautiful shape. 6. High efficient,Lower cost equipped with double spindles. 7. Three permission modes, operator mode, manufacturer mode and developer mode, which can protect the CNC machine key parameters modified by operators mistakenly. Compatible with MasterCAM, ArtCAM, Pro-E, UG, AutoCAD and other design software, 8. Wire rod , linear guide rail and other key precision components in CNC Machine have two levels of waterproof and dust protection. 9.The full-cover designed, effectively reducing the splash cutting fluid during processing. 10. Equipped with straight line 9pc tool storage each spindle, it can change tools fluently within 6 seconds , suitable for complex processing needs, for multi-tool processing occasions, multi-level protection. FUNCTION 1. Mill metal, non-metal, stainless steel, aluminum alloy mobile phone keys, mobile phone shell,mobile phone button. 2. Processing the micro-hole with mobile phone receiver . 3. Suitable for cutting and processing of composite material panel. 4. Optional four-axis to process more products.
Machine Specifications NO. Key Performance parameters Key Performance parameters JS-T500Q-V3.3
(Full-cover)Three spindles Machine Basic Information 1 Table size（mm） 830*500 2 Working Stroke for X.Y.Z（mm） 280*450*95 3 Working Table Structure Aluminum T-TYPE groove 4 Machine base Jinan Blue Marble 5 Net Weight 2.2T Machine Accuracy 6 Processig Accuracy（mm） ±0.01 7 Position Accuracy（mm） 0.006 8 Repeatability Accuracy for X.Y.Z（mm） 0.005 9 Spindle spacing（mm） 280 Transmission structure 10 Transmission Structure for X.Y.Z Wire Rod Transmission 11 Lubricant ways Automatic oil pump 12 Wire Rod C3 Grade imported 13 Linear Guide Rail P Grade imported Power 14 Max Power 9 KW 15 Max Running speed 12000mm/min 16 Max Processing speed 9000mm/min System Configuration 17 Control System Configuration Shanghai Weihong Ncstudio 18 Drive System Inovance Servo Absolute Value 19 Frequency converter Inovance 2.2kw Spindle Specification 20 Spindle number 3PC 21 Spindle Configuration 2.5KW 60000r/min 22 Spindle Cooling Method Water Cooling 23 Height From Spindle to working table（mm） 145 Knife Storage 24 Knife Quantity and Knife Storage Mode 9pc*3spindles Straight-line servo change tool 25 Tool Holder Type ISO20 Electric Part 26 Brand of Electric Control Part Such as Schneider，Omron or other 27 Power Supply Two Phase AC220V / 50Hz 28 Electric Cabinet Cooling Mode Condensator Other 29 Operate Environment Temperature：0°～45°C, relative humidity：30%～75% 30 Machining instructions G Code 31 Waterspray System Adjustable-angle Waterspray
