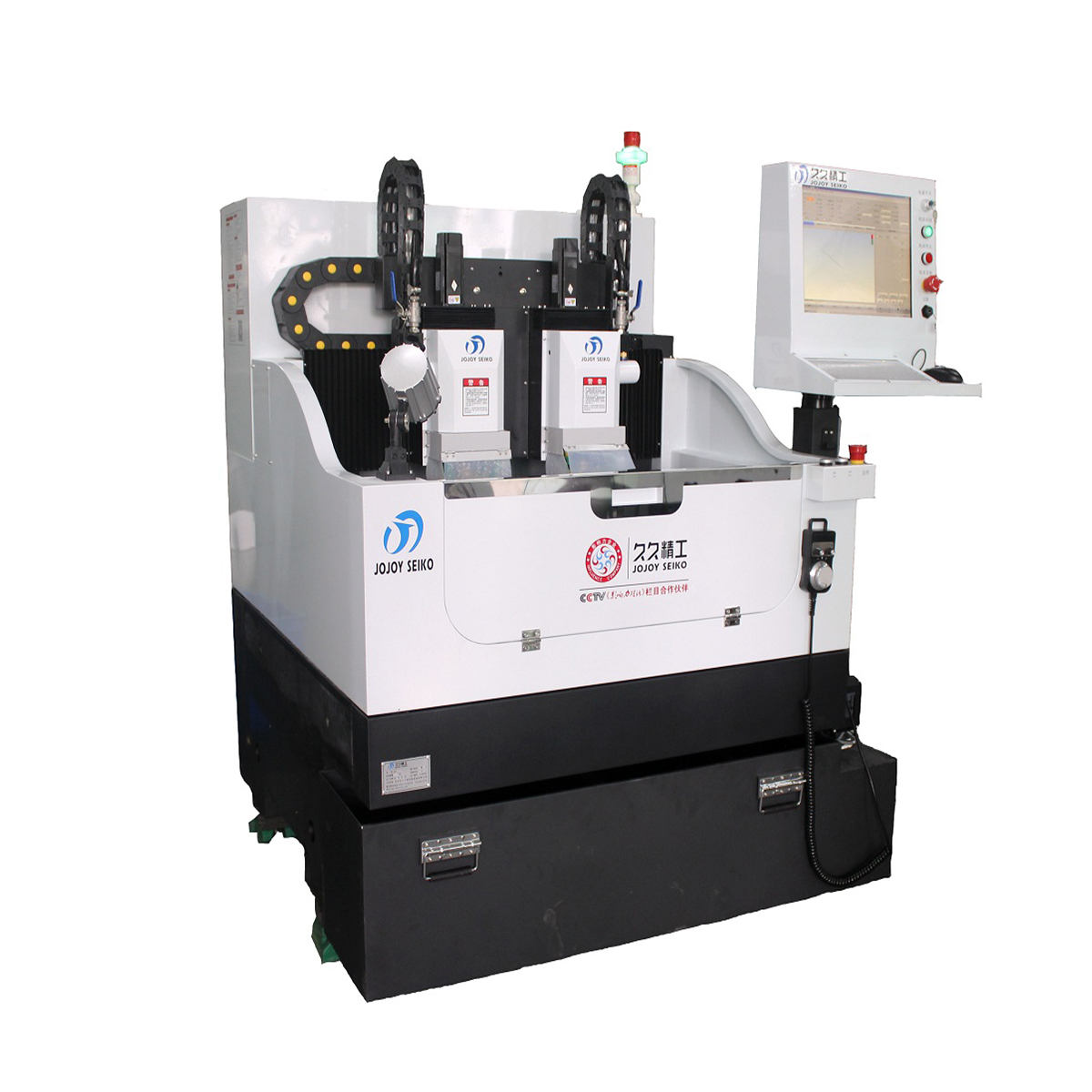

JS-450Y-V2.2

APPLICATION
1.Optical Glass：Mobile Screen Protector Glass, Touch Screen, Watch Lens, backside
2. Acrylic mold, Plastic mold, Moble Cover etc.
3.Metal and Non-metal
FEATURE
1. High precison and more stable with marble structure.
2. High precision grinding roller rod, linear guide rail, high precision bearings.
3. Newly designed automatic lubrication system for long-lasting lubrication of moving parts. Keep the machine clean and not leaking oil.
4. Equipped with high speed, high precision spindle and advanced spindle cooling thermostat system.
5. Four waterspray for Single axis able to split, Cooling effect is more ideal.
6. Mechatronics structure design, covers a smaller area, more beautiful shape.
FUNCTION
1. Opening holes and shape processing of glass lenses.
2.Cutting and chamfering of PC, acrylic and PET window lenses.
3.Batch processing of mobile phone panel.
4.Processing of precision glasses, clocks, metal products and aluminum alloy parts.

Machine Specifications
NO.	Key Performance parameters	Key Performance parameters
		JS-450Y-V2.2 (Half-cover)
		Dual spindle
	Machine Basic Information
1	Table size（mm）	680x500
2	Working Stroke for X.Y.Z（mm）	360x450x95
3	Working Table Structure	Aluminum T-TYPE groove
4	Machine base	Granite Marble
5	Net Weight	2T
	Machine Accuracy
6	Processig Accuracy（mm）	±0.01
7	Position Accuracy（mm）	0.006
8	Repeatability Accuracy for X.Y.Z（mm）	0.005
9	Spindle spacing（mm）	340
	Transmission structure
10	Transmission Structure for X.Y.Z	Wire Rod Transmission
11	Lubricant ways	Automatic oil pump Fuel
12	Power
13	Max Power	6.5KW
14	Max Running speed	12000mm/min
15	Max Processing speed	9000mm/min
	System Configuration
16	Control System Configuration	Shanghai Weihong Ncstudio
17	Drive System	Wise Servo (Shanghai Weihong) Absolute Value
18	Frequency converter	Inovance 1.5kw
	Spindle Specification
19	Spindle number	2PC
20	Spindle Configuration	1.8KW 60000r/min Brand：SF
21	Spindle Cooling Method	Water Cooling
22	Height From Spindle to working table（mm）	145
	Electric Part
23	Brand of Electric Control Part	Such as Schneider，Omron or other
24	Power Supply	Two Phase AC220V / 50Hz
25	Electric Cabinet Cooling Mode	Condensator
	Other
25	Operate Environment	Temperature：0°～45°C, relative humidity：30%～75%
26	Machining instructions	G Code
27	Waterspray System	Adjustable-angle Waterspray
